Parsing Stuff with Flows (Part 2)

Standard

In part 1, I built out the change of thinking that we will need in this blog post to amp up our data parsing using flows. For a quick recap:

  1. The scenario is that we have questions and answers
  2. The flow does the parsing by treating questions as keys
  3. We are using a text input in a flow to simulate the action of a user copy / pasting question answers into a text field

As demonstrated in the last post, this works within the context of a flow, but now in this post, I am going to show you how to apply this. To demonstrate this, I am going to add a text box onto both the lead record and contact record to receive data, two text boxes that will receive the parsed answers and a checkbox to display an error state. To launch this flow I am going to use a process builder on the lead and contact.

The process builder functionality is the same on leads and contacts. The ID will be passed to a variable in your flow. This variable is used by the flow to determine which update action to use. The input is also passed over to a variable. This does mean that for those following along at home that they will need to change their formulas from using a text box to using the formula. This is in addition to the changes needed to make it an autolaunched flow (Removing screens, etc).

Now, I did mention the whole error checking thing in my last post, so baked that in as well. The key here is to first check for errors THEN figure out which record needs to be flagged.

The end result will be something like this:

with error check

So, how does this work? Fan-Tas-Tic. With just two processes and a flow, I am able to do parsing on each record.

end results

Adding this parsing logic to a new record would just be adding a new process and updating your flow. This is a great example of how you can use flows to harness the power of apex with the ease and lower support cost of configuration.

Now, this is setup for a pretty specific example…A rep would be pasting in data from an external source, but the methodology would be the same as long as you had a source of text. So, with tweeking you could use this on fun stuff like inbound emails or maybe even chatter posts!

How does it feel? Not quite like this, but close.

I have the power.gif





Advertisements

Parsing Stuff with Flows (Part 1)

Standard

Salesforce is really good at a lot of things, but digesting or looking for bits of data within large chunks of text is not a particular strong suite, though to be fair, not may systems can brag about how awesome it’s parsing ability is. I was thinking about this subject since there seems to be two camps, the configuration camp backing workflows and formulas and the code camp backing apex. I am going to propose a bit different way…an adminveloper way.

To start with, we are going to use flows for this. The reason I am going to use a flow is that I want this as object agnostic as possible and I don’t want to be constrained by any of the formulaic limitations (Looking at you char limit of related formulas!). Using a flow will also let me do some fun stuff later on (cough, next blog post, cough), but the biggest reason I want to use flows is the variables.

But, before we get into the nuts and bolts, I need to first talk about how I changed my thinking about this. Let’s say I have some questions in a text field and I want to parse out the answers to these questions. In the past, I might have tried to hard code in some right / left functions, but that is rigid and leads to stuff like “Answer this question in less than 255 char…”, ugh. Instead of trying to build out left / right stuff that ignores questions, you need to think of questions as keys in your document. They are a unique set of text / numbers that should only occur once in your doc, and because we are thinking like this, we can use the FIND function to locate their specific points within the text.

For testing purposes, I am just building out a basic flow with a long text input field that will be parsed.

The flow will look for my “keys” (AKA, questions) and determine how much distance (in char) between the LAST CHAR of a question and the FIRST CHAR of the next question. For the last question, we are going to use a footer as the marker (“Thanks for your time!”).

I am going to do this with a series of formulas, one for each question:

  1. Find out how long the whole piece of text is (This is just a LEN(your text here), not going to expand it out.)
  2. Find out where each question ends
  3. Find out how long each answer is
  4. Build out the answer

Formula number two is finding out where the questions ends. To do this, you use the “find” function, looking for the variable within your text. Now, you need to ADD to this the length of the question since you are looking for the END of the question and FIND returns the char location. Here is what the formula looks like:

find({!varQuestion1},{!Enter_Sample_Text_Here})+len({!varQuestion1})

Now that we know where the first question ends, we need to find out how long the answer is. We do this by subtracting the value from the first formula from where the value of where the next question (or text) starts. I did it this way, though you could have also just used a new find function. In a nutshell, at this point, we have determined that the end of question 1 is X and the start of question 2 is Y and that the answer is Y-X long.

({!FindQuestion2}-len({!varQuestion2}))-{!FindQuestion1}

Knowing this, we are going to go ahead and build out the formula that strips out the answer from the text. It is going to use a combination of left and right functions. We are essentially grabbing all text to the RIGHT of the end of question1 and then taking just LEFT text of that in the length of the Answer

left(
right({!Enter_Sample_Text_Here},{!GetLen}-{!FindQuestion1}),{!Question1Length}-1)

For the last question, you would just use the footer location:

{!FindQuestion4}-{!FindFooter}

FindFooter = find(“Thanks for your time!”,{!Enter_Sample_Text_Here})

This is how this function would look just running it from a flow:

So yeah, with just a few formulas inside of a flow, parsing can be easy – peasy if you adjust your thinking. Now, before I leave you all hanging for part 2 of this blog post, let’s also take a look at something fun. What happens if someone starts to monkey with the questions? Well, through a little bippity boppity boo we can do something about it, without any more formulas. See we are using the FIND function already in the first formula that finds the end point of the question…and if the find function doesn’t get a match it returns a zero, thus, we know that if the formula that finds the end point of a question returns the length of the key variable something is off. This can be done with just a decision!

Alrighty, that is it for now! Part 2 is going to expand on this FUNctionalitye even more, so stay tuned!
As always, let me know if there are any questions / comments / or you just want to buy me coffee and pick my brain.





Clone User – Lightning Awesome

Standard

Way back in the old tyme days of 2014, Salesforce was running a contest called #Salesforce1selfie. I decided to try porting my clone user flow (Spoiler, totally worked) but that isn’t the fun part. The fun part was using flows for MY gain!

marsha marsha marsha

Andrew, Andrew Andrew

But, that was 2014 and it is now 2017 and Lightning is now the cool kid on the block. So, going to take a revisit to the old clone the user app and see about making it more 2017 than 2014.

First things first, I had to recreate the clone user flow. Surprisingly enough, you really just need to follow my previous mentioned post and you are good to go. You gotta make sure to activate it though.

The real change is on the page layout. The easiest way to to do this is to go to a user record, click on the gear icon and then click on edit page. Sorry for the crappy screenshot, new computer.

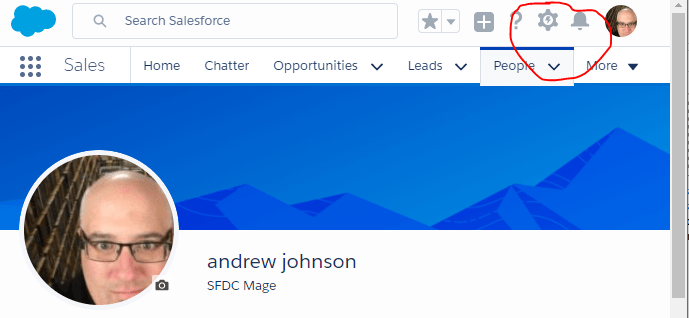

user click on gear.PNG

Now that you are on the page edit layout (I am sure there is a better technical name!), I would do the following, though the ONLY required part is adding a flow widget.

  1. Add in a tab widget.
    tabs
  2. Reorder the tab widget so that related is on the right.
    swap done
  3. Rename details tab to your variation of clone user.
    renamed section
  4. Drag a flow widget to that tab.
    flow widget

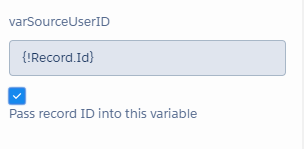

  5. Set the flow to be your clone user flow and the variable to be the record id.
    pass variable

Go ahead and save the changes and make sure it is set to be the default of whatever you have setup. Click into a user profile and behold, the tab that says Clone User!

user page

Click on that tab and WOOT, the user ID from the source is passed.

clone user on page.PNG

The rest is literal history. You don’t even need to really update the original flow!

Questions, comments – Let me know!



andrew

Smarter Text in Flows

Standard

As Salesforce admins, I hope you have figured out that Flows can make your system super smart. I think this is a smart little hack to flows that can help make them even smarter!

Hopefully not this smart

Here is the setup. You have a flow and in this flow there is some data that is stored in variables. Because this data wants to go forth and adventure, you might use a text template to put some, well, text around those variables so that it makes sense. The text template would then be used in an email alert (just for example).

The thing is, as we all know, the minute you get the text of ANYTHING dialed in, someone asks for it to change. So, into the flow you go, modify the text template, save a new version, etc, etc, etc.

But, what if there was a better way? That question was rhetorical, since there totally is a better way.

For this blog example, I am just going to have a two screens, one as a starting point and a final screen that will substitute for the above mentioned email alert.

flow overview

No clever caption for this

Notice, there is NO text templates in this flow.

Look - No Text Templates

But, the end screen has all this text? WHAAAT?

Final Product

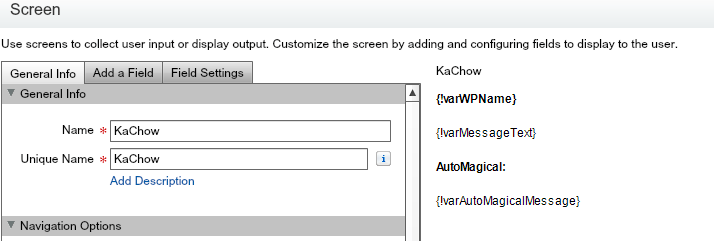

And, just to prove I am not pulling a fast one, here is what that field looks like…it is just variables.

and just to prove...

Instead of using a text template, I am using a text field on an object. The trick here is that you have to enter the variable technical names (Curly brackets, exclamation points) into the text field. This text field is then pulled in the flow via the record look up and will accept the values from the variables.

Really, this is acting JUST LIKE A TEXT TEMPLATE, but with the advantage being that if you want to modify the verbiage you don’t have to go through the modify / save as / activate cycle.

But, we can make this EVEN BETTER! Obviously, having to enter the technical variable name limits how many people can actually use this. But, by adding a bunch of code…LOL, just kidding. We are going to build out a formula field instead. You have to do some gymnastics to get the formatting to work, but once you have it built out, you now have a formula that will show up on the actual records itself and used just like the text field above.

formula           formula on screen

And, the end result is the same!

automagical results



so, what do you all think? useful? not? any suggestions? I even take requests if there is a weird question (about salesforce) you might have.



You know who likes innovating? I like innovating.

Standard

You know who likes innovating? I like innovating.


NOTE – Not actual salesforce admin writing blog.

Thus, when I saw that Salesforce Seattle was hosting an app innovation workshop, I decided to sign up.

The class was pretty neat, the group brought out a SE that showed us how to build out some apps and how the new lightning interface was going to make app building EPIC.

And then, just like that, it was our turn to build an app. We separated out into teams and planned (And ate tacos!). We had 2 hours to build out an app that was mobile, had some business value and used the lightning interface….and had a clever name.

No problem.jpg

NOTE – Not actual blog writer.

My team (Fairy Godmothers) decided to tackle a problem that is all too familiar to sales teams (and ghost busters) …you know what I am going to say here, “Who ya Gonna Call”?


NOTE – Not actual team photo

Being that I have never done sales, this is all anecdotal, but the nods of both the AE’s and SE’s in the room told me that I was on to something. I have noticed that a salesperson will get on a call that should not require a technical resource and then BAM! The potential customer brings a nerd along and the hard questions start to flow. The salesperson then is left scrambling for resources, vowing to never let this happen again! The next call the salesperson goes on they invite the SE and the SE just listens in and play angry birds. On a side note, I once worked at a large company that the meetings would get so large because of this phenomenon, it would take like 10 minutes to do introductions.

Being that we only had two hours, I decided to keep this simple. No custom objects, just using the functionality Benioff gave us! So flows were used…because…well…I love flows. But seriously, using flows also gives me the ability to create advanced, code like (Dare i say, low / no code?) functionality without worrying about things like UI and, well, code.

The flow itself is not anything spectacular (two hours!). Screen Shot 2016-12-21 at 10.17.40 AM.pngIf it is launched via the app, it just pulls up a list of the users open opps. The user selects one and then is presented with a list of current active users and a selection around communication methods. Selecting email will send an email, but selecting text sends out an email using the email to phone number “hack” (is it a hack any more after it has been around as long as this one?).

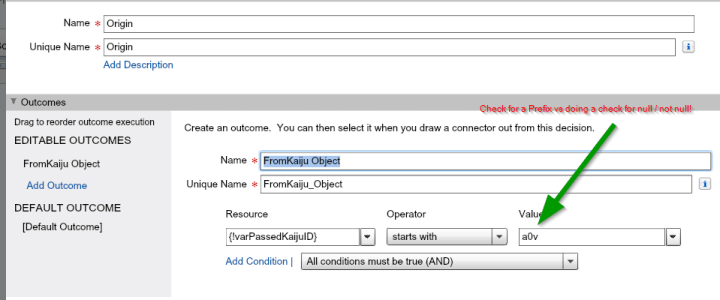

However, there is one bit of fun that I want to call out (as I have done before). I pass a variable to the flow which is then analyzed. This variable is ONLY populated when a flow is launched from a record, so if this variable is populated, we would know that the flow started from a specific record. By doing this, I can build out decisions that adjust the functionality. In this case, I have two start screens, one for when the flow is launched via the app (and shows all opps) and one for when it is launched via record (and just goes right to the fairy godmother selection).

Screen Shot 2016-12-20 at 9.15.09 AM.png

“And then the running back goes around the TE..BOOM!”

By doing this, you can avoid using two flows what is essentially the same functionality.

To get this working on the individual record, you have to use a visualforce page


NOTE – this is the blog author writing code (just kidding).

because the button URL hack just won’t work as expected. You can place a flow on the record page layout, but I wasn’t able to figure out how to pass a value. If you know now, shoot me a tweet (@jok3r4o2) OR send me a message through the success community. If you are local to Bellevue, I will buy you a coffee.
Anyways, not a huge deal to create a VF page. I have documented it a few times AND by doing a VF page on a button, it allowed me to make it mobile really easy by just adding an action!

<apex:page standardController=”Opportunity” showHeader=”false” sidebar=”false” >
<flow:interview name=”life_ring”>
<apex:param name=”varSourceOppId” value=”{!Opportunity.Id}”/>
</flow:interview>
</apex:page>

Alrighty, so that is the nuts and bolts of my two-hour build. Pretty dang happy with this app and will probably put into production. But, how I would I make it better? Well, cue the Scooby Doo transition!

giphy



  • Show users that are logged-in. I found a really cool table when building out the flow called “AuthSession”. https://developer.salesforce.com/docs/atlas.en-us.api.meta/api/sforce_api_objects_authsession.htm This is the table that shows who is logged in and how. Now, it wouldn’t be as straightforward as just using this as a dynamic lookup, but still, the idea that you could see who was logged in before you contacted them is pretty great.
  • Finding Relevant Users. Using the power of flows, we could do some data crunching to build out a profile of a specific opp (product, competitor, etc…) and then use this information to pull only fairy godmothers who have had experience in these areas.
  • Gamify! This type of app lends itself to gamification. I would have built this out so that Fairy Godmothers got credit or went up a lead board (AKA, Dashboard) for the help that they do. If you go down the gamification path, brush up on Maslow’s Heirarchy of Needs to figure out how to reward employees.
  • Communicate in multiple ways. I am using email and text, but it would be a good next step to also post in chatter. You could also use a service like Zapier or IFTTT to post to slack.

And that my friends is that! As I said, be sure to check out an app innovation workshop. I came away excited for Lightning UI and all the neat things it can do along with a great app idea and a couple Starbucks Gift cards.

As always, did I miss anything? Do you have a great idea for an app and just need a bit of help? Find me on success.salesforce.com and drop me a line!

Quotable Quotes for 500 or how I learned to love SFDC CPQ.

Standard

Boy Howdy! It has certainly been a while since I have posted here! Hope everyone was missing me. I have a particularly interesting blog post for you all today…it explains my truancy AND talks about some neat stuff I have been doing!

51kdgksaudl

But, first, we have to go back in time to August 1…You see, on August 1, 2016, I made the jump from where I was to a funky little place called Auth0. There I was, admiring a shiny new macbook and an almost pure like driven snow org when my boss interrupted my revelry by saying:”Hey, glad to have you, we just got Steelbrick and you will be configuring it”. Jump forward to August 10th and I am installing into Sandbox. The next 55 days were a blur (Oh yeah, we went live last Friday, 55 business days after starting!) …taking training, reviewing documentation, asking questions, redoing, redoing and redoing… The net result is, however, that on October 28th we went live with Salesforce CPQ.

Now that you know the setup, let’s get on with the rest of the blog. First off, some high level process orientated goodies.

  • Have someone who knows the company build out the smartsheet workbook…and it should not be the sys admin. I am SUPER fortunate in that my boss was able to crank out the smartsheet doc for me to start with. If I had to do this myself, it would have been a huge timesuck.
  • As a sys admin, figure on 100% participation on this one. I am estimating an easy 400+ hours to get this puppy up and running. Of course, if you read this blog post and follow some of my suggestions, you should be able to shave at least 10% off that total. But, long story short, make it widely known that this is your priority.
  • Simplify where you can. Do you really need that approval step? Do you really want a listing for Product X that makes you no money and you only sell once per year?
  • Embrace the Chaos – things will change. Stay flexible, learn the tool and prepare!

OK –  think those are some good pieces of advice to start with. Now, let’s get into some fun stuff. Here are my top pieces of actual technical advice.

  • If you are running with basic approvals, build out your approval steps as formulas that can be referenced by the approval process. This is perhaps one of my favorite all around tips for salesforce, but super applicable here. Let’s say that you have an approval process that looks at a specific percentage field and you only want an approval to happen if that field is above 50%. IF you have activated that approval process and then need to make a change, you will have to clone / activate / test etc… However, if you make the approval step a yes / no formula that looks at your fields, you can adjust the formula without having to monkey with your approval steps.

~ What? You want SFDC specific stuff? OK – fine!~

  • Create an admin layout for quotes / quote lines. Seriously, go in there RIGHT NOW and do it. Then, add all the SFDCcPQ fields to that layout. This will save you a bunch of time.
  • On the topic of new things. Go forth and create a CPQ ADMIN App. You will then need to create a bunch of new tabs for it. I created tabs for block prices, line columns, actions (products / price), dimensions (products / price) and template sections. Throw that stuff along with the OOTB tabs on the admin app..you will thank me later.screen-shot-2016-10-31-at-1-43-50-pm
  • Replace the “New Quote” button. So, just for a good exercise, after installing the package, create a quote with the out of the box new quote button. It is brutal. I replaced this with a “Create Quote” button that uses a flow to bring over all the fields I need and also to ask any questions. The net result is that I get less confusion and a way faster process.
  • I also want to call out the field “Watermark Shown” on the quote layout. This field is what controls if a watermark is shown or not. Add it to your layout and be aware that it defaults to unchecked, so will have to devise a mechanism to default it to checked (Cough, flow, cough).

I think this covers the basic stuff. I will try to write more as I think of it. Overall, the experience was a good one. I would HIGHLY recommend that if you are a small shop and you can spare your sys admin for a couple weeks that you try and do this yourself. It is totally doable and as an upside, you get to know where all the dark corners are and how to fix stuff on your own.

Anyone else mess with SDFC CPQ? What has been your experience? Any specific section of the above post you want me to expand on?

Fuzzy Searching in Salesforce Flows

Standard

Salesforce flows are a magical thing, like good coffee at work and unicorns.

coffee unicorn.jpg

This is how I want my coffee delivered.



I have come to realize that there are limits to even the most magical things (BOOO!).

The limitation I have found in flows is around how you search for records…but, let me be clear, it really isn’t a big deal. For most people, finding records using the typical “equals”, “contains”, “starts with” and “ends with” functions will work just fine. I however, found myself going down a path where that wasn’t going to quite cut it. The challenge is how to search on a text input in a manner that is more google like. I don’t know what the kids now a days call it, but back in my day, we might call if “Fuzzy Matching”.


Fuzzy, Not Fozzie!

For example, let’s revisit my Jaeger Dispatching System (Special Note, Pacific Rim 2 is scheduled). This system uses dynamic drop downs for the Jaegers, but, what happens when you have a bunch of Jaegers’?  You can build out a record search based on a text box, but, as mentioned before, you are limited to “equals”, “contains”, “starts with” and “ends with” functions. At this point, you might be saying, fine, just use a “contains” operator…and that would work, except what happens when the user spells something wrong? Contains is just two wild cards, so if you entered in “Dangur” instead of “Danger” you would not get a hit.



What happened next is pretty funny. I started thinking about how there are patterns in words…and then started thinking about how the pairs of letters could work. Spoiler alert, it totally worked. I proved it in Excel by just using a vlookup and some formulas, so I got pretty excited. It was then that I googled this matching pairs thing and found out that yep, some one wrote about all the fancy math behind it.

http://www.catalysoft.com/articles/StrikeAMatch.html

So, after building out the proof in Excel that this would work, I set about trying to get this to work in Salesforce…specifically a flow. I want to be able to enter in some characters into a text box and see returned results based on how well they matched my search term.

The first thing I did is create a field that removes the spaces from the Jaegers’ names and made them lower case. I don’t want it being “Cherno Alpha”, I wanted “chernoalpha”. This is done via formula field. If doing this in real life, I would build out my formula to also remove punctuation, but this is just for my Jaeger dispatch and my blog, so I am just removing spaces.

Thus, concludes the non flow part of this blog…what follows next is like 100% awesome, you have been warned.


Woot! FINALLY got to use this meme!

The first couple things are pretty basic, I have a start screen that has a text box. Next, I have a fast lookup on my Jaeger object. This gets all the Jaegers and puts them all in a collection. Next up is my loop, where I go through each Jaeger record. The only “gotcha” is that when you do the fastlookup, you need to bring over your formatted text from the record. Screen shots of this would be pretty boring, so here is a picture of all the giant robot toys.Jaeger Toys.jpg

Within the loop, I start with two assignments that copy the formatted Jaeger Name (no spaces) and the search string to variables.
I am going to use these variables for the rest of the functions, including the formulas. I take the search string that was entered and format it up.  I remove the spaces, count how many pairs I have and if the value has a remainder, I also remove the last character. I do this because otherwise the matched pair logic would be searching on a single digit, which would skew the results. The formula also checks if the search string is just 3 char, and if it is, it will treat these three char as one “pair”. Pictures and Text!

Formatted Search String

if(len(substitute({!Search_String},” “,””))<>3,
if(
mod(len(substitute({!Search_String},” “,””)),2)<>0,
left(substitute({!Search_String},” “,””),len(substitute({!Search_String},” “,””))-1),
substitute({!Search_String},” “,””)),substitute({!Search_String},” “,””))

Now I have to compare my first matched pair to the formatted name. of the search string that was formatted. I use a formula to get my matched pair:assignment - formatted search string.png

if(len(substitute({!Search_String},” “,””))<>3,
lower(left({!varSearchStringUseCopy},2)),lower(left({!varSearchStringUseCopy},3)))



The flow will next do a name check via the decision function. If the Formatted Jaeger Name contains the current matched pair, the flow adds a value of 1 to the counter variable and adds the current pair to a variable that will show the matches and the ID of the current record to another variable. Ugh, that was hard to read, here is a picture:assignment - match found

If the pair is NOT a match, well, I don’t really do anything with it but you might want to shove it to a debug variable. In fact, if you are starting this from scratch, I would HIGHLY suggest you do this!

Next up is yet another assignment, this time though, we are removing the pair was just searched on. This is done with, you guessed it, a formula:

if(len(substitute({!Search_String},” “,””))<>3,
substitute({!varSearchStringUseCopy},left({!varSearchStringUseCopy},2),””),substitute({!varSearchStringUseCopy},left({!varSearchStringUseCopy},3),””))

remove search string

Once that is completed, we check to see if there are more pairs to check. This is done by looking at the number of pairs left after the current pair is removed. This is in a formula I like to call “DisappearingSearchString”:

len({!varSearchStringUseCopy})

The whole process looks like this:

match process

If all the pairs have been used, the flow then checks to see if there were any matches with a decision point on the counter variable. If yes, then we add the matching data into a variable and then start the loop all over again. Because we will want to display some results in a table like format, be sure to append a text template that has a line break at the end of the string. To do this, create a text template with <br> in it.

build out result line.png

One of the things I really wanted was a way to see how many of the pairs were found in a given record. I do this with this formula:

({!varTripCount}/{!frmSearchStringPairs})*100



Before the loop starts all over again, any used variables are reset:

clear counters.png

So, enough talk! Let’s see how this works! For comparison purposes, I put in an alternate lookup that will use the “Contains” search function of what was entered in the input.

I also added more Jaegers, 8 in total!

Jaeger List.png

boom



First search string is going to be “Eureka”:


and here are the results:Search Results - Eureka.png

The “Contains” function did what I expected and returned two records, “Striker Eureka” and “Eureka Smack”. However, it did not find “Striker Eurek”, but the matched pairs function did!

Let’s try this on another scenario. Suppose there is someone new in the Jaeger Dispatching Center and they forgot that it is “Cherno Alpha” and they enter in “Alpha Cherno”.

Search String.png

The “contains” search function would literally return ZERO results, whereas the matched pairs function would show an 80% match with Cherno Alpha.Results - Cherno Alpha.png

So, there you have it. With a bit of work, you can do fozzie…err…fuzzy search results with in a flow with Zero coding!

As always, if you have any questions, comments, or suggestions, please let me know!

Andrew
